What is THINKTPMS G2?

* Works on Both 315Mhz & 433Mhz Sensors
* Relearn TPMS Sensors
* Activate TPMS Sensors
* Check ECU-ID Matching Status
* Check Sensor Real-Time Data
* Program THINKCAR/MUCAR Sensors
* Covering more than 98% of car models, the tire pressure activation programming learning function
* Check OE Sensor Information: Check OE Sensor Brand, Part No., sensor frequency etc.
* Bluetooth update via APP（THINKDIAG+ APP&VENU APP）

THINKCAR VENU i-Pro is a new generation of tire pressure diagnosis tool, which can realize Sensor Activation, Sensor Programming, Sensor Learning, Tire Pressure Fault Diagnosis. It can be connected to i-VENU APP via Bluetooth and used to easily diagnose tire faults on mobile phones. It can also be used with THINKCAR/MUCAR series products to help you diagnose car tire information.

This TPMS scan tool VENU i-PRO enables you to activate More than 98% of the models in the market. You can rapidly and accurately trigger and decode sensors to read their ID, pressure, temperature, battery, frequency and OE Part number before servicing the tires/wheels or when you are performing programming or relearn.

Tips: Only for use with THINKCAR/MUCAR products

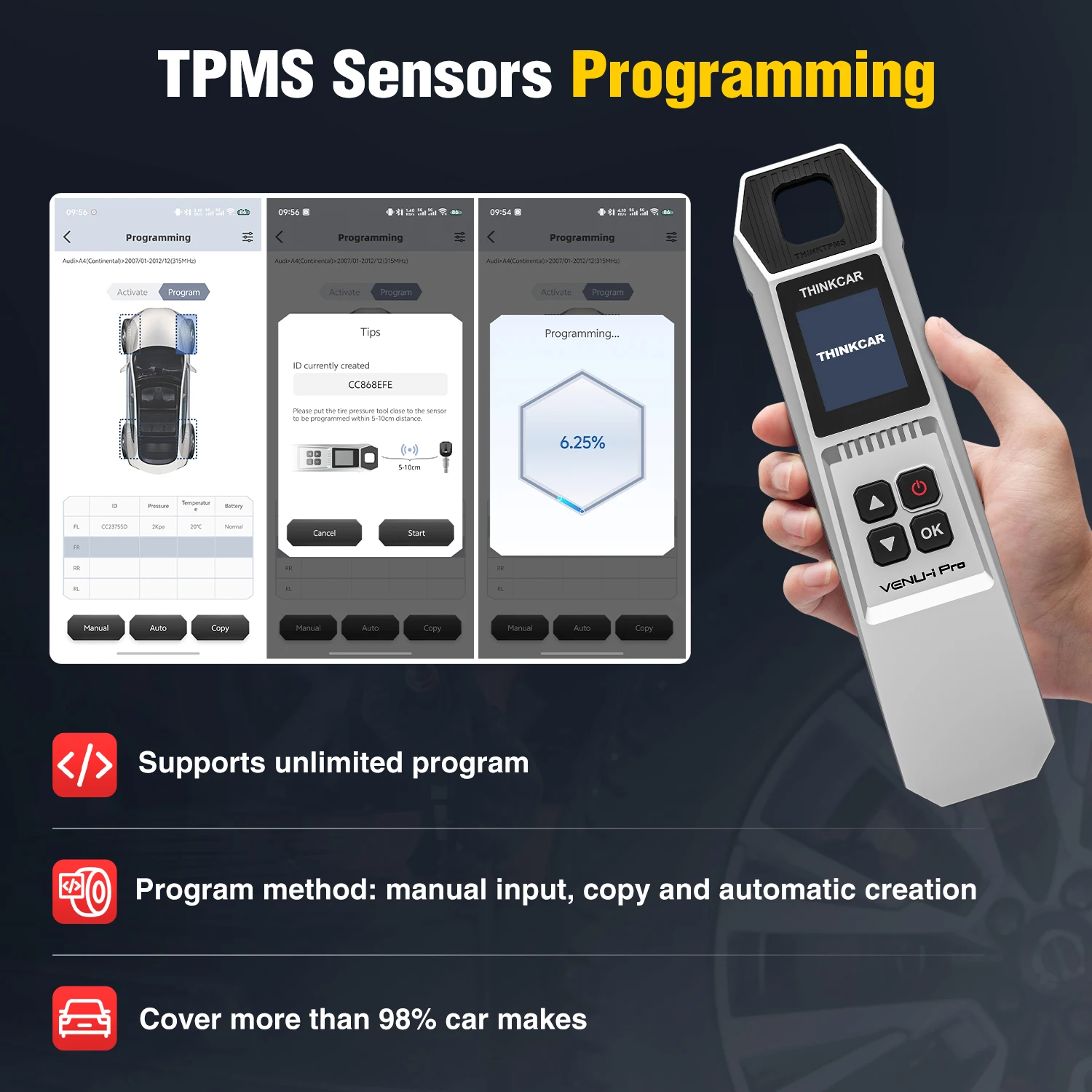

How To Program TPMS Sensors?

( Pls note : The program Function need works with THINKTOOK service, and only for thinkcar sensor )

Mode 1: Automatic creation of lD

The system automatically creates the sensor lD, place the Star Card sensor in the roundhole above the device for programming, and then return to the activation page afterprogramming and press the ok button on the VENU-i Pro device to activate it.

Mode 2: Manual lD

Creation lf the current in-vehicle sensor ID is available, it can be programmed using themanual entry of the original vehidle sensor ID. Select the vehice tires and click on ManuallyCreate to enter the lD and program it.

Tip: lf you choose to create the sensor ID manually, you will need to perform a "Learn" function after programming is complete, of the original sensor iD is entered, the Learn finction is not required.

Mode 3: Activation Copy

The original vehicle sensor needs to be activated first to get the original vehicle sensor IDand then write the original vehicle sensor ID to the sensor to be replaced by copying thesensor lD to the StarCard sensor.(1)Activate the original vehicle sensor, the sensor data will be displayed on the device aftersuccessful activation.(2) Place the StarCard sensor near the top of the VENU-i Pro device and program it.(3) Click the [OK button] to program the copied sensor data to be written into the sensor.The programmed sensor by this method is mounted directly on the tires to be installed onthe vehicle The vehicle TPMS warning indicator will automatically turn off.

Tip: Before using activation copying, it is important to ensure that the original sensor can be activated.

Mode 4: 0BD copying

Connect the diagnostic equipment with the vehicle diagnostic seat first. Read the vehiclesensor data by executing [Read ECU lDj, and then write the read vehicle sensor data intothe star card sensor by copying.(1)Connect the diagnostic equipment with the vehicle diagnostic seat and click [Read ECU ID] to read the lD information of the vehicle sensor.

(2)Select the tire to be operated by clicking the [Copy by OBD ] function.

(3) Place the THINKCAR sensor near the top of the VENU-i Pro unit and program it.

(4)ECU lD is written into the THINKCAR sensor after programming is completed.

Via i-VENU mobile application to perform TPMS diagnostics

VENU i-Pro Support THINKDIAG APP and i-VENU APP,APP is free

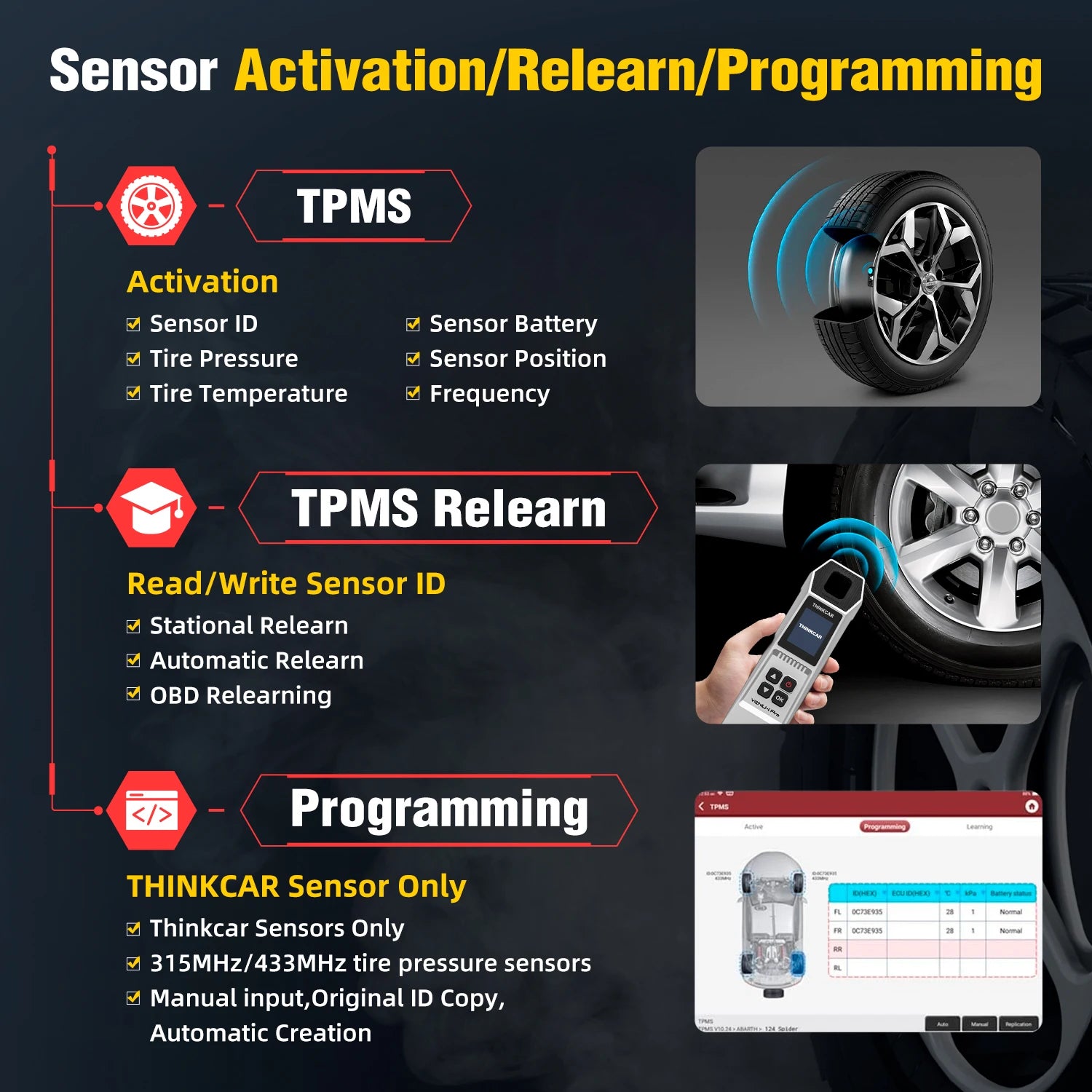

>>THINKCAR VENU i-Pro can activate all 315MHz/433MHz tire pressure sensors, and can read, copy, write sensor IDs and read tire pressure data (pressure, temperature, battery status)

>>Support Sensor Learning：The tire pressure matching learning function can perform tire pressure fault diagnosis through prompt learning steps, including code reading and code clearing.

>>Support Sensor Programming： supports unlimited repeat programming function, covering more than 98% of imported models with tire pressure system, and supports multiple ID generation methods: manual, copy, and automatic creation.The user can use this function to program the sensor data to a blank THINKCAR/MUCAR sensor to replace the sensor with insufficient power and not working properly.

>>TPMS fault light is on /Read Fault Codes

>>TPMS fault light is off after clearing codes / Clear Fault Codes

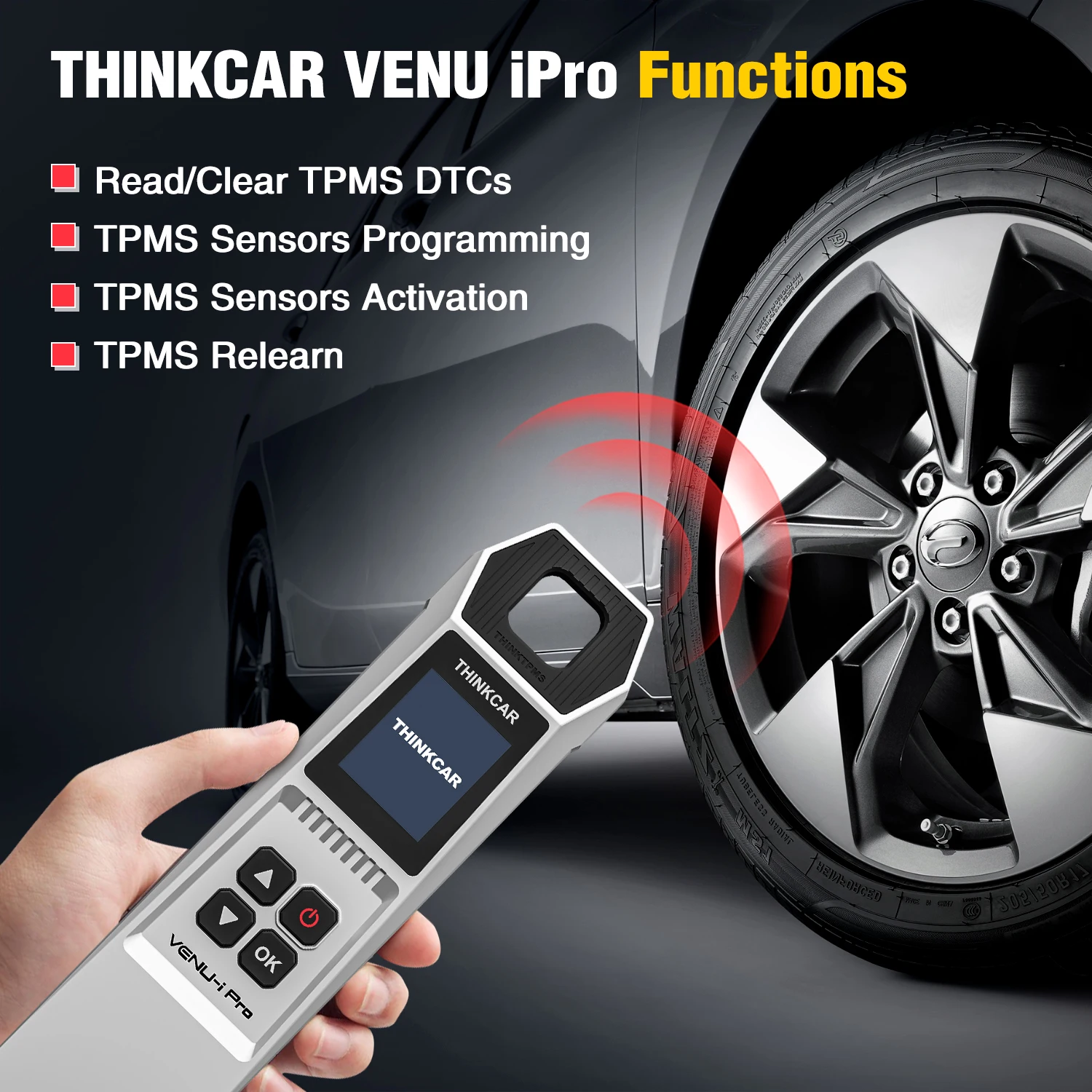

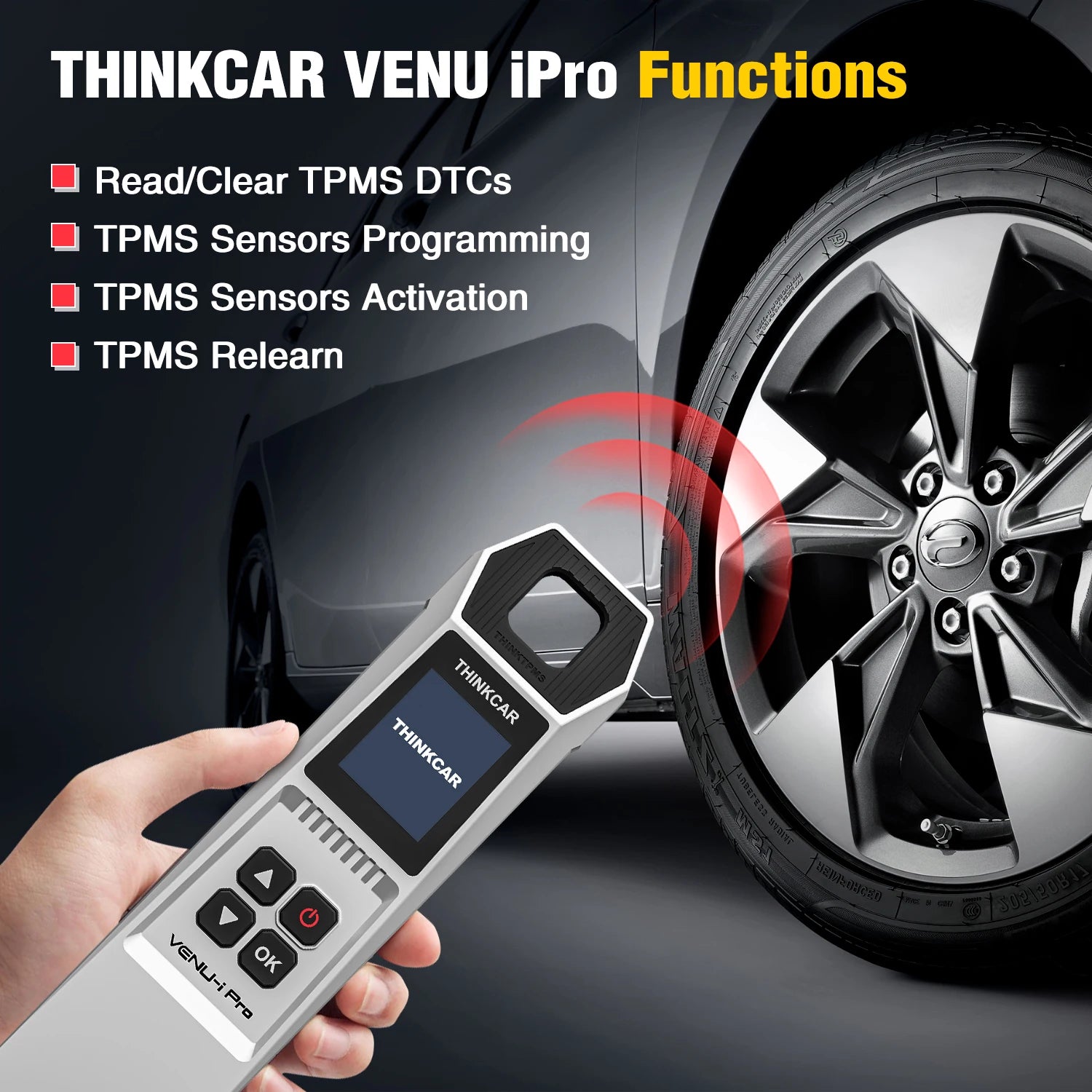

VENU i-Pro -- new generation of TPMS diagnostic and service tool, designed to activate/read/check known OBD2 TPMS sensors/status/health (sensor ID, tire pressure, tire temperature, battery status, Sensor frequency), program to start the RF (radio frequency) communication tire pressure sensor and relearn the TPMS position after maintenance.

One key to receive tire pressure sensor data, real-time read tire status, simple and convenient operation, built-in learning guidance, let you quickly become a master operator. This product fits for THINKCAR/MUCAR diagnostic tablet (MUCAR VO6/VO7/VO8,THINKCAR 689/689BT,672)etc

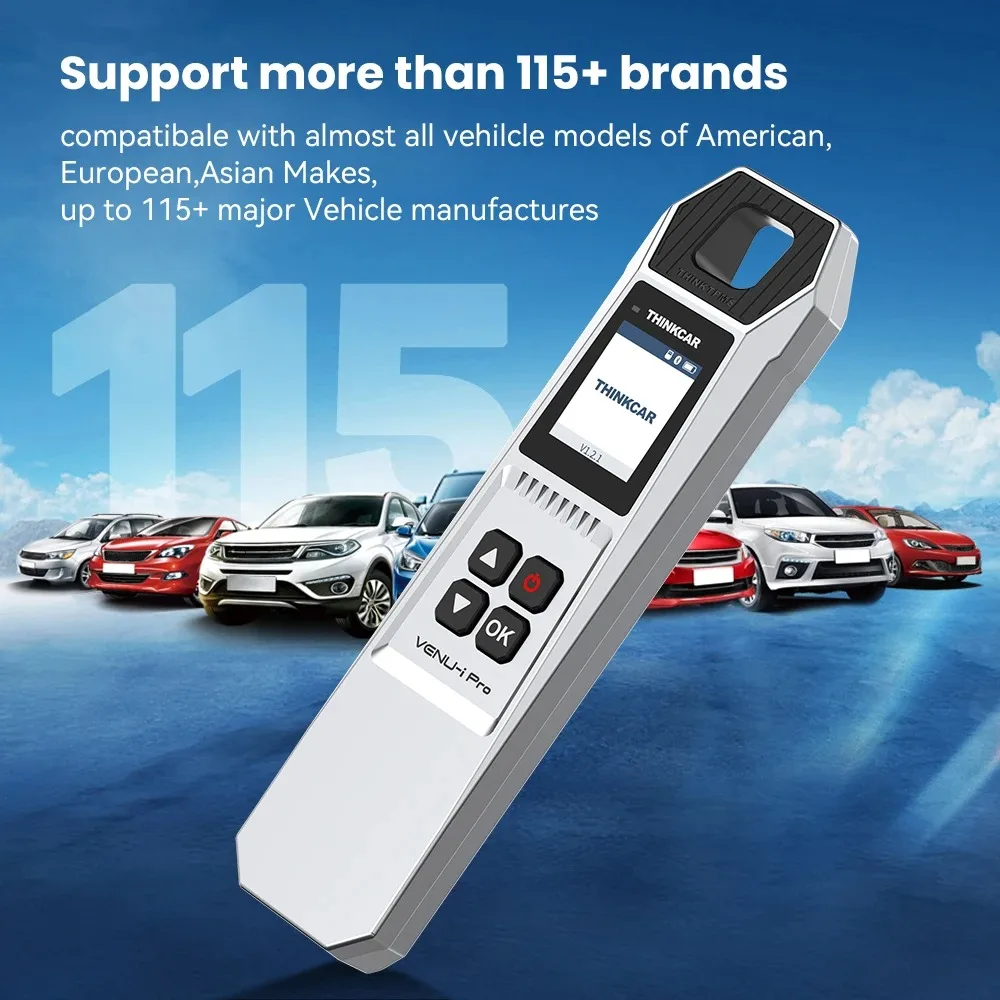

Support more than 115+ brands

For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with following protocols:
-ISO 14230-4 (KWP2000)
-ISO 15765-4 (CAN)
-ISO 9141-2 (iso)
-ISO 14229 (uds)
-SAE J1850 (VPW & PWM)
-Original protocols of makers

For advanced functions as active test, all system diagnostics, and maintenance service, it covers 95% of car models available in the market including:
-Asia:
for Daewoo, for Honda, for JP Isuzu, for Kia, for Mazda, for Mitsubishi, for Nissan, for SGM, for Subaru, for Suzuki, for Toyota,for Hyundai, for Ssangyong
-Europe:
for Aston Martin, for Audi, for Benz, for BMW, for Citroen, for Ferrari, for Fiat, for Land Rover, for Maserati, for Opel, for Porsche, for Renault, for Rover, for Saab, for Seat, for Skoda, for Smart, for Sprinter, for Volvo, for VW, for Peugeot
-America:
for Chrysler, for USA-Ford, for GM
And keep updating.

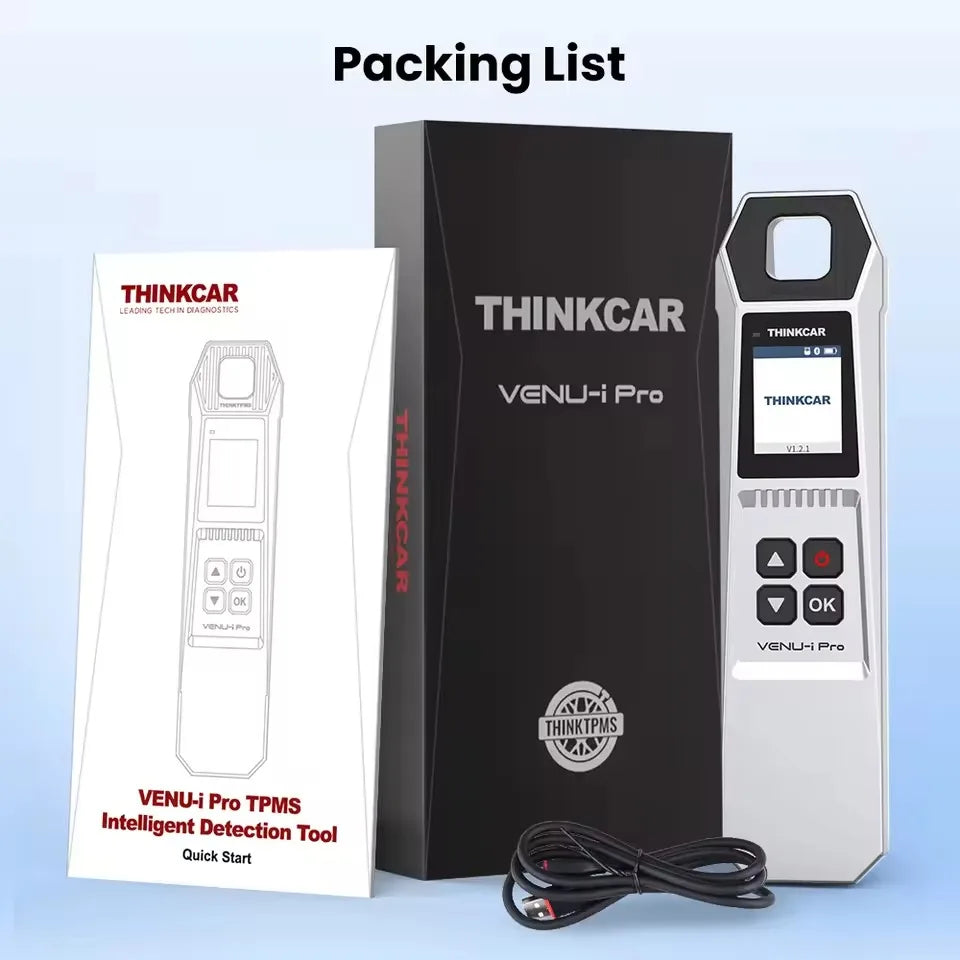

THINKCAR VENU I-PRO TPMS Packing List :
